HOME > Product Information HONDAFLOH®FABRIC

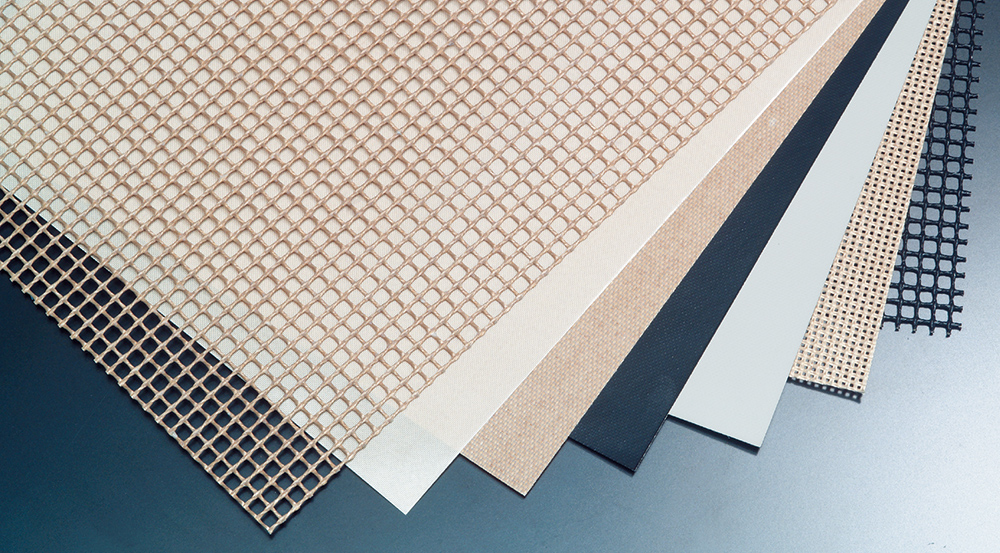

HGS Series
- Product Applications
- Food（baking ・ defreezing）, Fiber（heat ・ drying ・ heat press）, Packaging（heat sealing ・ shrink）, Electric device（crimping ・ drying）, Printing（drying）
- Features
-
- Excellent heat resistance （260℃）enables continuous use at a wide range of temperatures.
- Excellent non-adhesiveness, chemical resistance and dimensional stability.
- Plain and Open mesh fabric sheets and anti-electrostatic Ctype and resistance to UV radiation CW type are available.
- We can also supply two items as follows;
≪RA fabric sheets≫ Improved in resistance to abrasion and slip prevention and grip effciency.
≪LL fabric sheets≫ Improved in resistance to penetration and durability-quick release. - Meet standards of the Food Hygiene Act
- Characteristics
-
Reinforcing
MaterialFabric
StyleType Thickness
(mm)Weight
(g/m2)Tensile Strength
(N/cm)Maximum Width
(mm)Recipe Warp Weft Glass Fabrics Plain Woven HGS-P502 0.048 80 90 90 990 Standard HGS-P503 0.075 120 170 130 1000 HGS-P504 0.10 170 300 175 1000 HGS-P506 0.13 275 305 290 1000 HGS-P508 0.18 370 400 390 1000 HGS-P510 0.23 480 540 455 2400 HGS-P514 0.34 630 810 610 2400 HGS-P521 0.53 1060 970 800 3000 HGS-P522 0.54 805 1035 745 1900 HGS-P535 0.89 1345 1305 1060 2400 HGS-P506C 0.13 265 315 300 1000 Anti-electrostatic HGS-P510C 0.23 475 580 460 2400 HGS-P514C 0.34 630 805 640 2400 HGS-P510CW 0.23 490 530 420 1500 Resistance toUV radiation HGS-P514CW 0.35 625 795 570 2400 Open Mesh HGS-M580 0.90 620 910 790 3000 Standard HGS-M588 0.60 515 550 775 900 HGS-M589 0.65 545 730 725 2000 HGS-M590 0.98 480 535 570 2600 HGS-M590C 0.98 550 495 515 2600 Anti-electrostatic HGS-M590CW 0.98 565 345 355 2600 Resistance toUV radiation ※This table can be scrolled horizontally.
The figures are not the specification but the observed values.
Please acknowledge that content of the figures can be changed without notice.

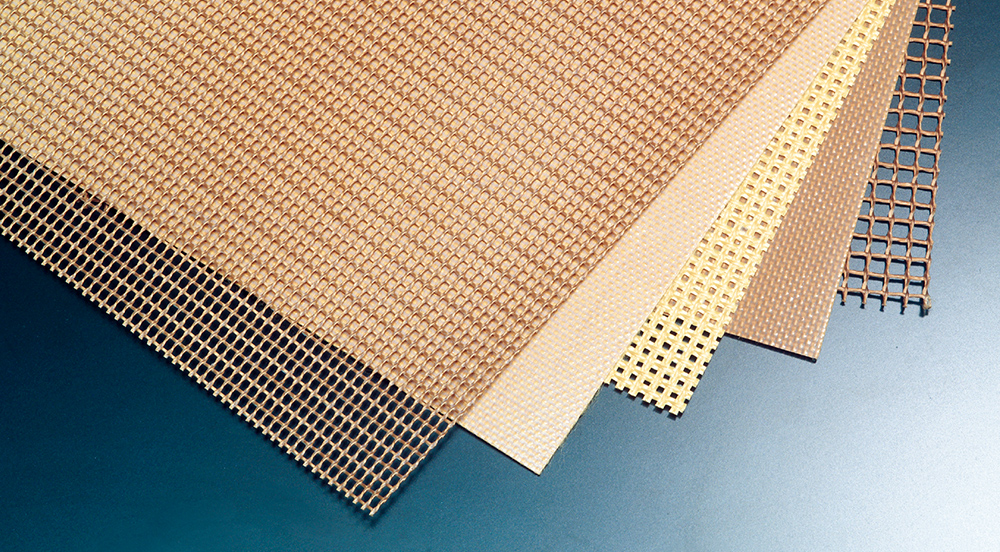

HAS Series
- Product Applications
- Food（steaming ・ drying ・ frying ・ non-adhesiveness ・ draining）, Fiber（drying ・steaming）Electric device（washing）
- Features
-
- HAS fabrics are superior properties in mechanical strength and resistant to steam compared with HGS fabrics.
- Excellent heat resistance（230℃）, non-adhesiveness and chemical resistance.
- Plain and Open mesh fabric sheets and anti-electrostatic C type and resistance to UV radiation CW type are available.
- We can also supply two items as follows;
≪RA fabric sheets≫ Improved in resistance to abrasion and slip prevention and grip effciency.
≪LL fabric sheets≫ Improved in resistance to penetration and durability-quick release. - Meet standards of the Food Hygiene Act
- Characteristics
-
Reinforcing
MaterialFabric
StyleType Thickness
(mm)Weight
(g/m2)Tensile Strength
(N/cm)Maximum
Width
(mm)Recipe Warp Weft Aramid Fabrics Plain Woven HAS-P506 0.18 225 595 565 1000 Standard HAS-P510 0.31 400 1530 1400 1000 HAS-P512 0.33 500 1040 1030 1900 HAS-P517 0.50 680 1275 1190 2900 HASN-P510 0.21 260 220 225 1000 Open Mesh HAS-M575 0.85 420 705 1065 2000 HAS-M580 0.60 365 875 745 1200 HAS-M585 0.85 345 840 1135 2400 HAS-M587 0.58 330 1335 925 2600 HAS-M590 1.1 390 755 1525 2900 ※This table can be scrolled horizontally.
The figures are not the specification but the observed values.
Please acknowledge that content of the figures can be changed without notice.
