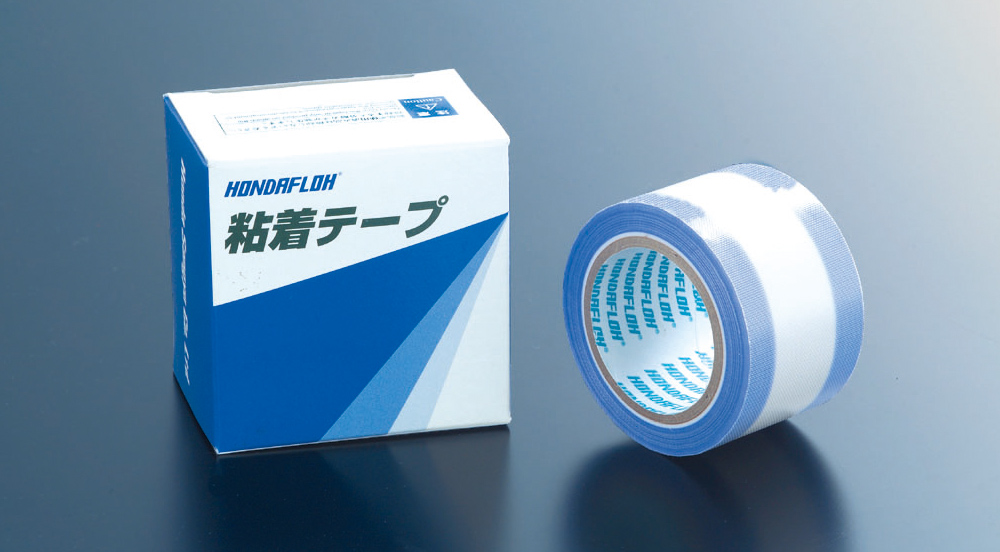

HAT-F series

Product Applications

heat resistance – quick release for heat sealing, vacuum packaging machine and electrical insulation etc.

Features

HAT-F series are PTFE adhesive tape that heat resistant silicone adhesive is applied on the backing of HONDAFLH® FABRIC.
We have T type adhesive tape increased adhesiveness against silicone rubber compared with standard type.

Product List

Type	Thickness （mm）	Width （mm）	Length （m）
HAT-F08	0.08	13, 19, 25, 30, 38, 50,100, 200, 300	10
HAT-F13	0.13
HAT-F15	0.15
HAT-F18	0.18
HAT-F30	0.30
HAT-F13T	0.13
HAT-F18T	0.18

Catalog Download

HAT-F（CF） series

Product Applications

heat resistance – quick release for heat sealing, vacuum packaging machine and electrical insulation etc.

Features

HAT-F (CF) series are PTFE adhesive tape that has no adhesive on the central part of tape.
It is preferable to cover the heat bar in the heat sealing machine.

Product List

Type	Thickness （mm）	Width （mm）	Length （m）
HAT-F13CF	0.13	25(10), 38(20), 50(20)	10
HAT-F18CF	0.18

Catalog Download

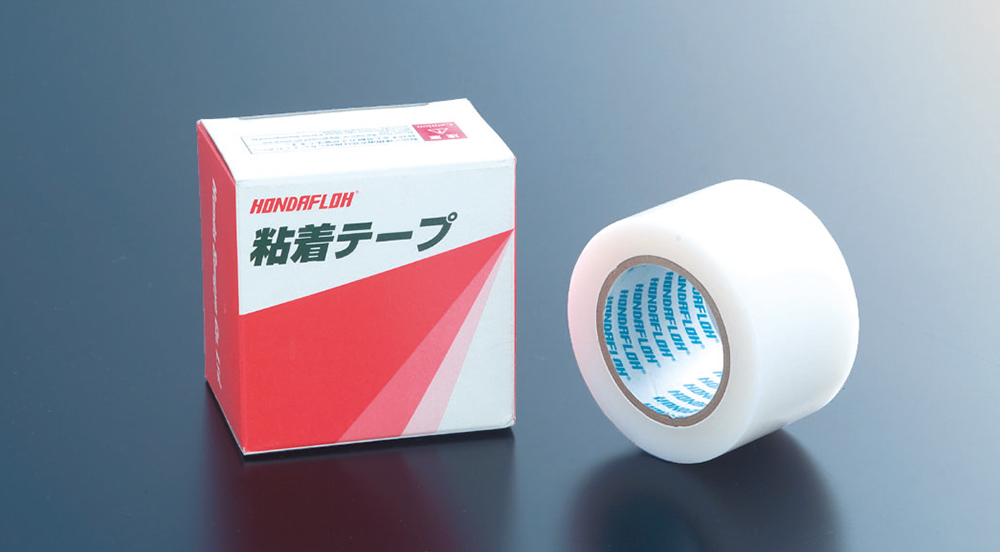

HAT-S series

Product Applications

electrical insulation, lining （shooters, hoppers, a roll of printing machine）etc.

Features

HAT-S series are PTFE adhesive tape that heat resistant silicone adhesive is applied on the backing of PTFE skived film.
They are flexible and their surface is smooth.

Product List

Type	Thickness （mm）	Width （mm）	Length （m）
HAT-S08N	0.08	13, 19, 25, 30, 38, 50,100, 200	10
HAT-S13N	0.13
HAT-S18N	0.18
HAT-S23N	0.23

Catalog Download

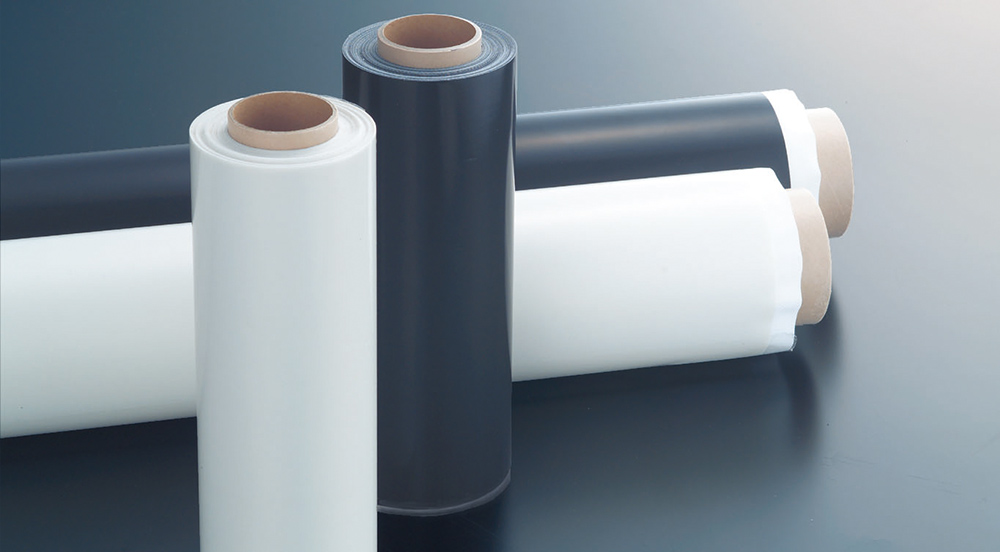

HAT-P series

Product Applications

lining（rolls dryers in paper manufacturing, shooters, hoppers）etc.

Features

HAT-P series are PTFE adhesive tape with liner.

Product List

Type	Thickness （mm）	Width （mm）	Length （m）
HAT-P603	0.13	1000	10
HAT-P606	0.18
HAT-P610	0.30
HAT-P603C	0.13
HAT-P606C	0.18
HAT-P610C	0.30

Catalog Download
